Tipo de rodamiento: dos rodamientos de bolas
material:; impulsor y;Marco: plástico (ul94v - 0)
plomo:; ul 1007 awg26
NbspNbspNbspNbspNbspNbspNbspNbspNbspNbsp;Electrodo positivo de línea roja (+)
NbspNbspNbspNbspNbspNbspNbspNbspNbspNbsp;Electrodo negativo de alambre negro一)
peso: 185,0 G

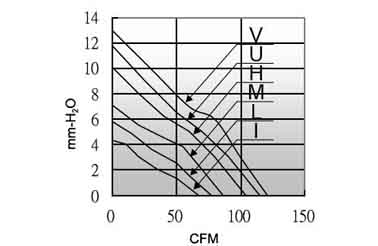

| MODEL | Bearing System | Rated Voltage | Operating Voltage Range | Input Current | Speed | Maximum Air Flow | Maximum Air Pressure | Noise |
| PART NO | B/S/F | VDE | VDE | AMP | RPM | CFM | MmH2O | Db-A |
| WSA012025_12I | B | 12 | 7.0~13.2 | 0.2 | 2100 | 66.7 | 4.3 | 34.8 |
| WSA012025_24I | B | 24 | 14.0~26.4 | 0.12 | 2100 | 66.7 | 4.3 | 34.8 |
| WSA012025_12L | B | 12 | 7.0~13.2 | 0.3 | 2500 | 77.2 | 5.8 | 38.5 |
| WSA012025_24L | B | 24 | 14.0~26.4 | 0.17 | 2500 | 77.2 | 5.8 | 38.5 |
| WSA012025_12M | B | 12 | 7.0~13.2 | 0.48 | 2800 | 86.7 | 7.1 | 41.7 |
| WSA012025_24M | B | 24 | 14.0~26.4 | 0.28 | 2800 | 86.7 | 7.1 | 41.7 |
| WSA012025_12H | B | 12 | 7.0~13.2 | 0.75 | 3400 | 103.9 | 10.1 | 46.9 |
| WSA012025_24H | B | 24 | 14.0~26.4 | 0.4 | 3400 | 103.9 | 10.1 | 46.9 |
| WSA012025_12U | B | 12 | 7.0~13.2 | 1.05 | 3700 | 114.8 | 11.8 | 49.8 |
| WSA012025_24U | B | 24 | 14.0~26.4 | 0.55 | 3700 | 114.8 | 11.8 | 49.8 |
| WSA012025_24V | B/S | 24 | 14.0~26.4 | 0.7 | 4000 | 121.1 | 13 | 51.6 |
