Tipo de rodamiento: dos rodamientos de bolas
material:; impulsor y;Marco: plástico (ul94v - 0)
plomo:; ul 1007 awg26
NbspNbspNbspNbspNbspNbspNbspNbspNbspNbsp;Electrodo positivo de línea roja (+)
NbspNbspNbspNbspNbspNbspNbspNbspNbspNbsp;Electrodo negativo de alambre negro一)
peso: 6,0 G

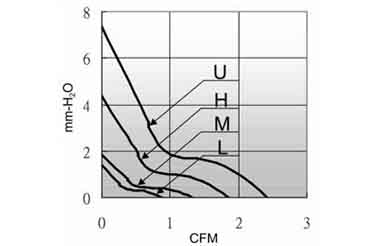

| MODEL | Bearing System | Rated Voltage | Operating Voltage Range | Input Current | Speed | Maximum Air Flow | Maximum Air Pressure | Noise |
| PART NO | B/S/F | VDE | VDE | AMP | RPM | CFM | MmH2O | Db-A |
| WSA02010_05L | B/S | 5 | 4.5~5.5 | 0.07 | 7000 | 0.35 | 1.1 | 22.3 |
| WSA02010_12L | B/S | 12 | 7.0~13.2 | 0.06 | 7000 | 0.35 | 1.1 | 22.3 |
| WSA02010_05M | B/S | 5 | 4.5~5.5 | 0.09 | 10000 | 0.71 | 1.9 | 24.0 |
| WSA02010_12M | B/S | 12 | 6.0~13.8 | 0.08 | 10000 | 0.71 | 1.9 | 24.0 |
| WSA02010_05H | B/S | 5 | 4.5~5.5 | 0.11 | 13000 | 1.06 | 3.2 | 29.0 |
| WSA02010_12H | B/S | 12 | 6.0~13.8 | 0.09 | 13000 | 1.06 | 3.2 | 29.0 |
| WSA02010_05U | B/S | 5 | 4.5~5.5 | 0.15 | 18000 | 1.22 | 3.8 | 32.0 |
| WSA02010_12U | B/S | 12 | 6.0~13.8 | 0.14 | 18000 | 1.22 | 3.8 | 32.0 |
