Tipo de rodamiento: dos rodamientos de bolas
material:; impulsor y;Marco: plástico (ul94v - 0)
plomo:; ul 1007 awg26
NbspNbspNbspNbspNbspNbspNbspNbspNbspNbsp;Electrodo positivo de línea roja (+)
NbspNbspNbspNbspNbspNbspNbspNbspNbspNbsp;Electrodo negativo de alambre negro一)
peso: 84,0 G

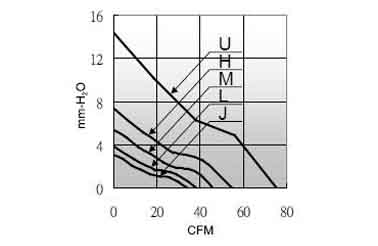

| MODEL | Bearing System | Rated Voltage | Operating Voltage Range | Input Current | Speed | Maximum Air Flow | Maximum Air Pressure | Noise |
| PART NO | B/S/F | VDE | VDE | AMP | RPM | CFM | MmH2O | Db-A |
| WSA08018_12J | B/S/F | 12 | 7.0~13.2 | 0.14 | 1500 | 5.31 | 3.5 | 24.2 |
| WSA08018_12L | B/S/F | 12 | 7.0~13.2 | 0.18 | 2000 | 7.08 | 4.7 | 28 |
| WSA08018_24L | B/S/F | 24 | 14.0~26.4 | 0.1 | 2000 | 7.08 | 4.7 | 28 |
| WSA08018_12M, | B/S/F | 12 | 7.0~13.2 | 0.23 | 3000 | 10.63 | 7.1 | 32 |
| WSA08018_24M | B/S/F | 24 | 14.0~26.4 | 0.14 | 3000 | 10.63 | 7.1 | 32 |
| WSA08018_12H | B/S/F | 12 | 7.0~13.2 | 0.35 | 3500 | 12.4 | 8.3 | 38 |
| WSA08018_24H | B/S/F | 24 | 14.0~26.4 | 0.18 | 3500 | 12.4 | 8.3 | 38 |
